Automatic High Speed Paper Sheet Counting Machine BPSZJ With 7 Inch Touch Screen

Product Categories
NINGBO BINPENG MACHINERY CO.,LTD
Contact Now

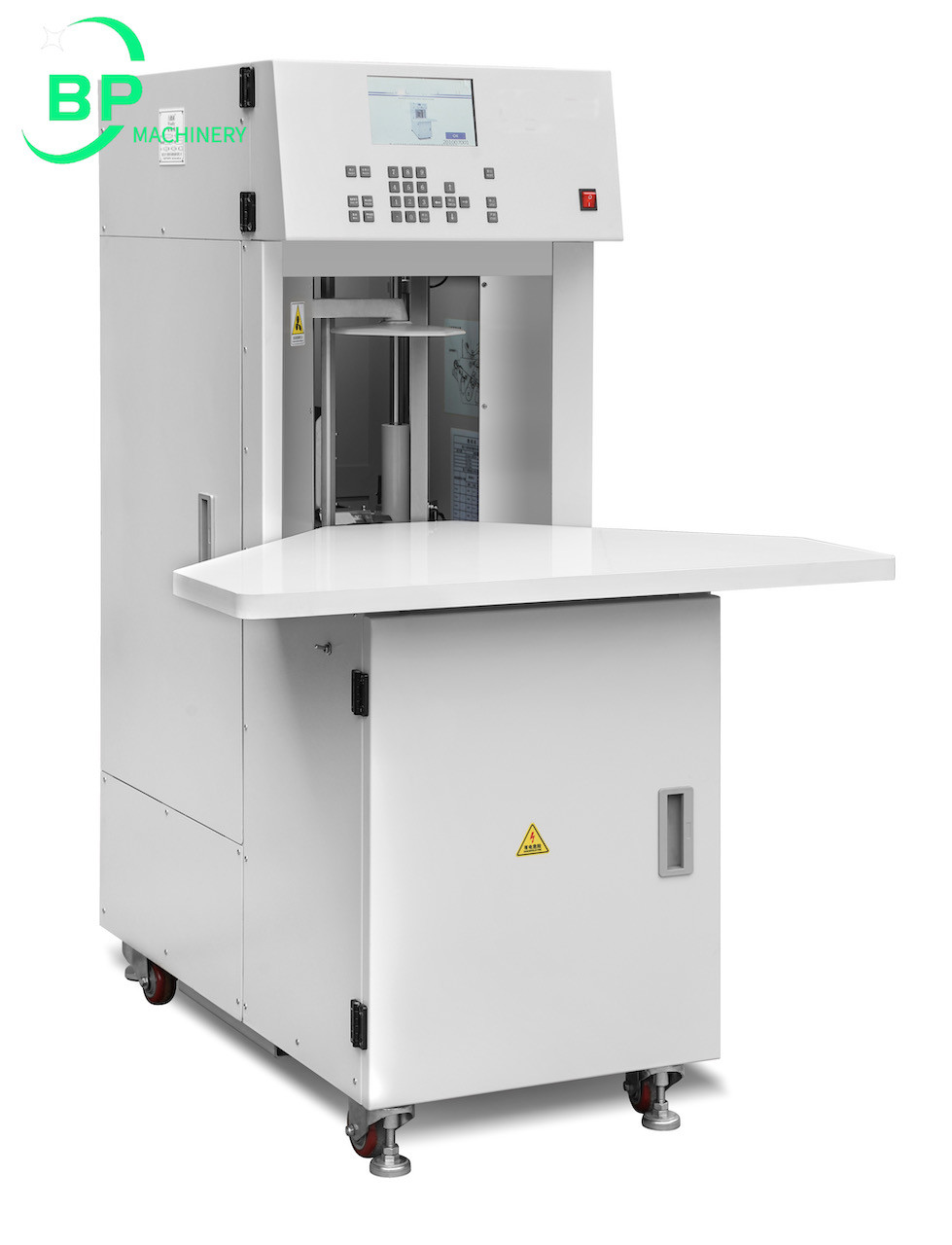

Automatic High Speed Paper Sheet Counting Machine BPSZJ With 7 Inch Touch Screen

Brand Name : BP MACHINERY

Model Number : SZJ

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiate (more quantity more cheap )

Payment Terms : T/T, L/C, Western Union

Supply Ability : 20 sets per month

Delivery Time : 5-20 days

Packaging Details : One Wooden box

Type : Paper counter machine

paper thickness : 22-230 g/m²(Carbon paper, offset printing paper, coated paper, etc.）

Max paper : 600x600 mm

Min paper : 100x150 mm

Motor : 0.4kw

Power supply : AC220±10V ， 50HZ

Stacking height : 300 mm (max )

Feeding table width : 600x600

Feeding table height : 760mm

Machine size : W 900mm ,L 1080mm ,H 1500 mm

Consumed power : 600W

Label for paper in pile : width 6mm , Length 100m

Weight of machine : 230KG

Warranty : 13 months after Sailing day

After sales services : Video training ，spare parts replaced all accepted

Contact Now

Paper sheet counting machine BPSZJ

Automatic High Speed Paper Sheet Counting Machine BPSZJ With 7 Inch Touch Screen

Description :

BPSZJ is the one of BP Machinery for paper counter ,already 20 years manufacutre experience in China market .It already be popular machine to counting paper and good tested in China factory .

  1. The paper counting machine is a high-tech product we committed to develop, which is an intelligent device that can automatically complete paper counting and paper insertion. With superior performance,it has a 7 inches color screen computer, intuitive and simple user-machine interface and adopts imported servo motor control the main motor.
  2. Any kind and any thickness of paper within the parameter range can be precise and high-speed counting. Special paper depending on the actual situation.
  3. The paper counting machine is rich in features to meet the needs of different users, in addition to the standard paper counting mode, there is the random paper label insert function,which can nark for different quantity of paper. It can edit and save 99 program groups, each program group can edit a different number of papers;
  4. The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;
  5. The specified number counting function is for sorting out the required number of paper from the paper-pile.
  6. Auto-diagnostic function.The operator can know .from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine itself abnormal operating conditions.
  7. It has a paper label fast changing structure.

Technical data :

paper thickness range 22～230g/m²(Carbon paper,offset printing paper, coated paper,etc.)
paper size Min.100X150mm,Max 600X600mm

Paper stacking height

 300mm max
Power Supply/voltage AC220±10V,50Hz
Motor 0.4KW
Feeding table width 600x600 mm
Feeding table height 760mm
Machine size 900(W)X1080(L)X1500(H)
Machine weight 230KG
label for paper in pile Width 6mm,Length 100m
Consumed Power 600kw

Features of High speed automatic paper sheet counter machine

1. Adopt servo motor control, 7-inch color screen

2. Can works with any types paper such as carbon paper, offset paper, coated paper, art paper, post cards, copy paper etc, high counting speed. It can mix counting different thickness of paper simultaneously.

3. It has random paper label insert function.

4. It has paper quantity detection function between preset quantity and finished quantity. The specified number counting function is for sorting out the required number of paper from paper pile.

5. The machine has auto-diagnostic function. Any error will display in the screen.

6. It has paper label fast changing structure.

Machine electrical configuration list

America ARM Core CPU Frequency:400MHZ
SDRAM:SAMSUNG DDR2,64MB
FLASH ROM:SAMSUNG 64MB
Listepping moto china
TFT:Foxconn 7 Inch
KEYPAD:OMRON
Paper Count Motor:FUJI Servo Motor
Air Pump Motor:chinakorea
IF Sensor:OMRON
Hall Sensor:OMRON
Switch Power:Taiwan Meanwell
Cable:America TE

Machines structure parts picture

Automatic High Speed Paper Sheet Counting Machine BPSZJ With 7 Inch Touch Screen(The structure of computer system and operation panel)

Automatic High Speed Paper Sheet Counting Machine BPSZJ With 7 Inch Touch Screen(Front structure of the label cutting unit)

Automatic High Speed Paper Sheet Counting Machine BPSZJ With 7 Inch Touch Screen(Side structure of the paper sucking unit)

Automatic High Speed Paper Sheet Counting Machine BPSZJ With 7 Inch Touch Screen(Side view of the Japan Fuji motor unit)

Automatic High Speed Paper Sheet Counting Machine BPSZJ With 7 Inch Touch Screen(Using Omron limit sensor)

Automatic High Speed Paper Sheet Counting Machine BPSZJ With 7 Inch Touch Screen (Using Japanese original NSK bearing)

Automatic High Speed Paper Sheet Counting Machine BPSZJ With 7 Inch Touch ScreenJapan Orion vacuum pump (Optional)

Appliacation picture:

Automatic High Speed Paper Sheet Counting Machine BPSZJ With 7 Inch Touch Screen
